Graph Data Structure
A graph
is a non-linear data structure consisting of nodes
and edges
. Formally, a graph
is a pair of sets (V, E)
, where V
is the set of vertices and E
is the set of edges, connecting the pairs of vertices.
In the examples below, circles represent vertices
and lines represent edges
Types of graphs
A graph can be directed
or undirected
. In a directed graph
(see below), nodes are connected by directed edges. Edges go only in one direction.
In an undirected graph
(see below), nodes are connected by edges that are all bidirectional.
Graph Representations
The standard graph
representation for graphs is called the adjacency-lists
data structure. An adjacency-lists
is an array of lists. In adjacency-lists
we keep track of all the vertices
adjacent to each vertex
on a linked list
that is associated with that vertex
.

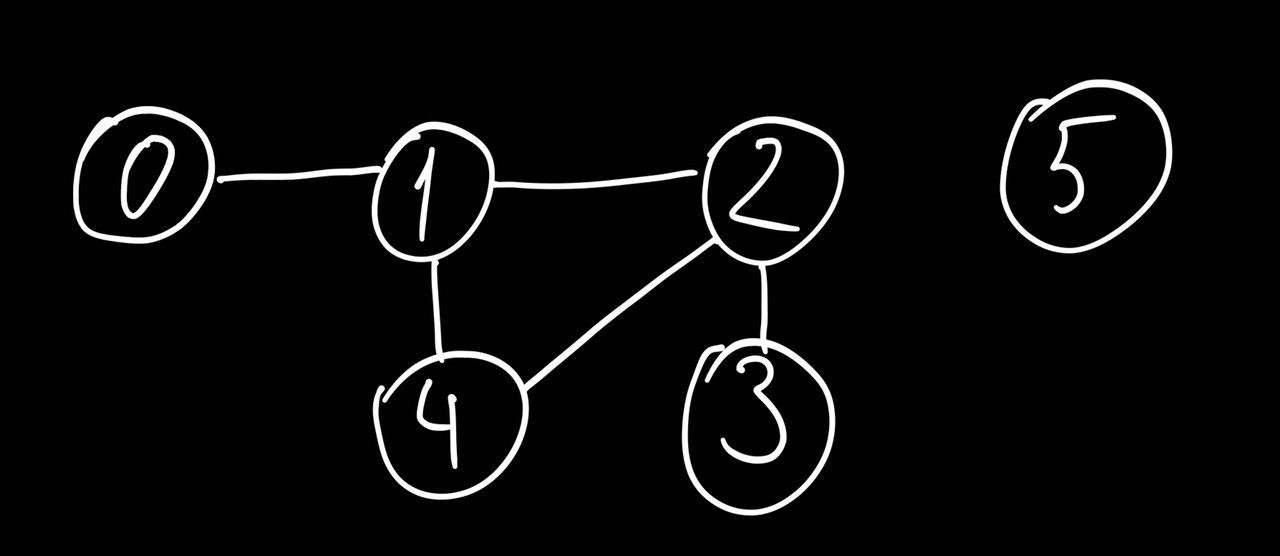

The adjacency-lists for below graph will be:
0: 1
1: 0, 2, 4
2: 1, 3, 4
3: 2
4: 1, 2
5: empty list
Another representation is called the adjacency matrix
. An adjacency matrix
is a 2D array of size V x V
where V
is the number of nodes in a graph. A element at matrix[i][j] = 1
indicates that there is an edge from node i
to node j
.

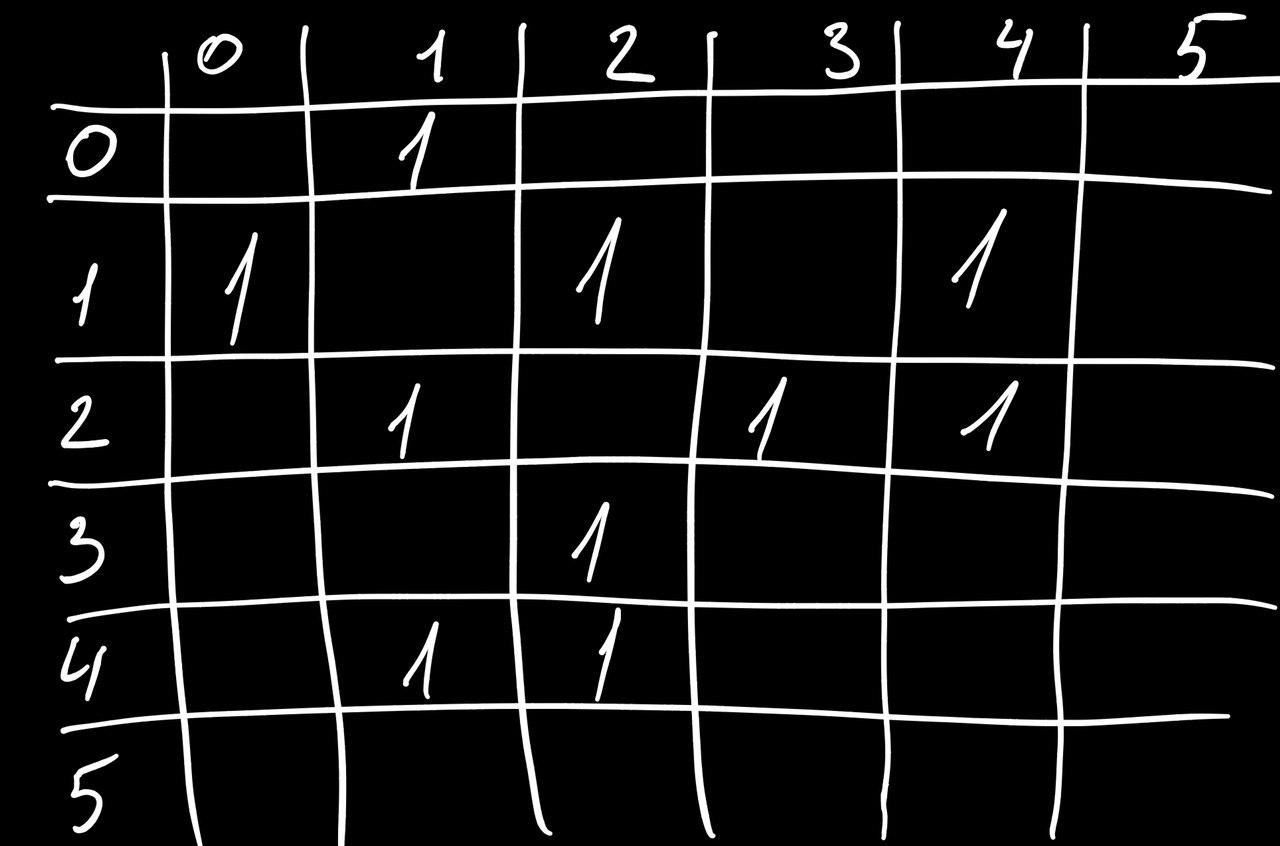

Here is the adjacency matrix for the same graph:
